QTOPIC-IDH 380F PATTERN

IDH silicon roller for 3D sleeking job and accurate & stable temperature control Dual unwinder system Superior Bonding Power by IDH Roller

Professional POD Laminators

Sleeking Solution for 3D High-Build Effect Realization

• IDH silicon roller for 3D sleeking job and accurate & stable temperature control
• Dual unwinder system : 2 different film rolls can be used without extra replacement
• Superior Bonding Power by IDH Roller
• Selectable slope angles of feeding table as in 0°,5°,10°for smooth feeding
• Foldable feeding table for convenient moving and minimizing space
• Quality enhancement of sleeking & laminating by increased roller pressure
• Perfect lamination without silvering (micro bubble) for all kinds of substrates
• Usage of eco-friendly GMP Thermalami® film
• Automatic feeding gap adjustable device equipped
• Automatic burst cutting system equipped
• Rotating decurling bar to avoid scratch on the prints Equipped
• Adjustable roller pressure for effective & high quality lamination



Features


• IDH Roller for accurate & stable Temp. control
• Exchangeable/Commonized PCB
• Semi-automatic feeding paper gap control
• Air compressor (with light weight & lower noise) is placed inside the body
• Strengthened laminating pressure for more stepped-up bonding power effecting perfect quality of output
• ‌Ergonomic touch screen for enhancing operator-centric convenient control & quality productivity
• Cantilever type film shaft for easy film loading

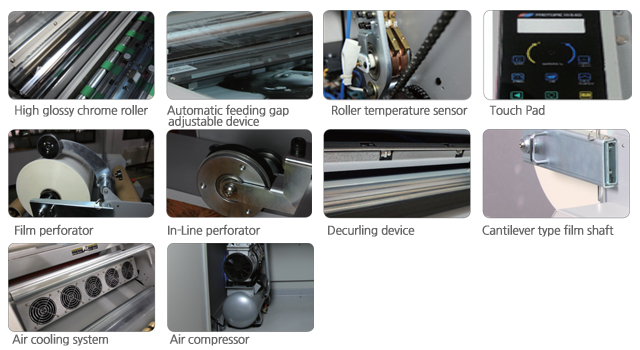

QTOPIC-380F PATTERN-파츠목록.JPG

Application

  – Poster, pop sign, menu
  – Book cover & jacket
  – Photo graph & album
  – Name card
  – Gift certificate
  – Label (Micronex Lamination)
  – Greeting Cards / Year book
 QTOPIC-380FQTOPIC-380F DUAL
 Dimension (W*L*H)720 X 1770(1000) X 1350mm (folded)
 Laminating Speed0.8m/min ~ 6.5m/min
 Paper size (W*L)Max.380*500mm (option: 1200mm)
Min.180*210mm
 Laminating FilmsSingle Side: POLYNEX (20~43mic), PERFEX (25mic), NYLONEX (27~44mic)
MICRONEX: Gloss, Matt, Hologram
 SleekingGloss, Matt, Hologram, Metallic
 Substrate weight120~350g/㎡
 Power RequirementAC 220~240V, 50/60Hz, 13A
 Power Consumption3.5Kw
 Warm-up Time (mins.)7 min.
 Heating SystemSillicon roll : Induction heater
Mirror roll : Infrared Heater
 Laminating Temp. (℃)MAX.150℃
 Temp. ControlCapacitive touch screen
 Speed ControlCapacitive touch screen
 Display systemLCD Panel
 Pressure ControlPneumatic cylinder
 Film Core77mm (3”) / Dual – 58mm, 50mm
 Air compressor1/3 HP, 120L/min
 Temp. sensing methodSillicon roll : Infrared Sensor
Mirror roll : Thermo-couple inserted in the roller

PROTOPIC III-PLUS 540 Series(21")

PROTOPIC III-PLUS 540 PROTOPIC III-PLUS 540 DUAL Professional POD Laminator Easy operation & moving with foldable feeding table & one-body framed design

Key features of PROTOPIC III-PLUS 540 series

• Perfect lamination without silvering (micro bubble) for all kinds of substrates
• Usage of eco-friendly GMP Thermalami® film
• Equipped automatic feeding gap adjustable device
• Equipped automatic burst cutting system
• Slide drawer type paper stacking table
• Equipped rotating decurling bar to avoid scratch on the prints
• Adjustable roller pressure for effective & high quality lamination
• Ergonomic designed touch screen for easy control and high productivity
• Available automatic feeding & stacking with GMP PROFEEDER-5478 & GMP PROSTACKER-5478

Application

• Posters, pop-signs, menus
• Bookcovers
• Photographs, photo albums
• Business cards
• Gift certificates
• Labels
• Greeting cards

 PROTOPIC III-540PROTOPIC III-540
DUAL
Dimension (W*L*H, mm)800*2240*1350800*2440*1350
Laminating speed (m/min.)1m/min ~ 15m/min
Max. Paper size (W*L, mm)
540*1200

Laminating films

Single Side: POLYNEX,
PERFEX, NYLONEX
MICRONEX : GLOSS, MATT,
HOLOGRAM
Single Side: POLYNEX,
PERFEX, NYLONEX
MICRONEX : GLOSS, MATT,
HOLOGRAM
Sleeking(Re-Winder)Gloss, Matt, Hologtam, MetallicGloss, Matt, Hologtam, Metallic
Substrate thinkness 120 ~ 350g/㎡
Power requirementAC 220~240V/, 50/60Hz, 12A
Power consumption3.45 kw
Warm-up time7 min
Heating systemInfrared heater
Laminating temp.150℃ Max.
Temp. ControlCapacitive touch screen
Speed controlCapacitive touch screen
Display systemLCD Panel
Pressure controlPneumatic cylinder
Film core77mm (3”)
Air Compressor1/3 HP, 120L/min
Temp. sensing methodThermo-couple inserted in the roller shell
